Description
The Factory Service Manual for the diesel engine. Includes detailed illustrations, instructions, and diagrams that facilitate step-by-step processes for the removal and installation, assembly and disassembly, servicing, inspection, repair, troubleshooting, tune-ups.
Pub.No: 3000865R1
Issued: june 1967
Language: English
Pages: 128
Upon successful payment, you shall promptly receive a PDF file delivered to your email.
Models
International Diesel Engine
D-206
D-239

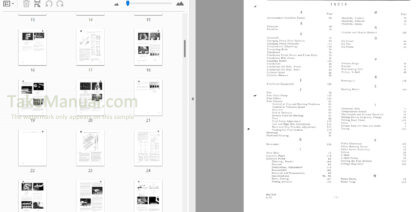

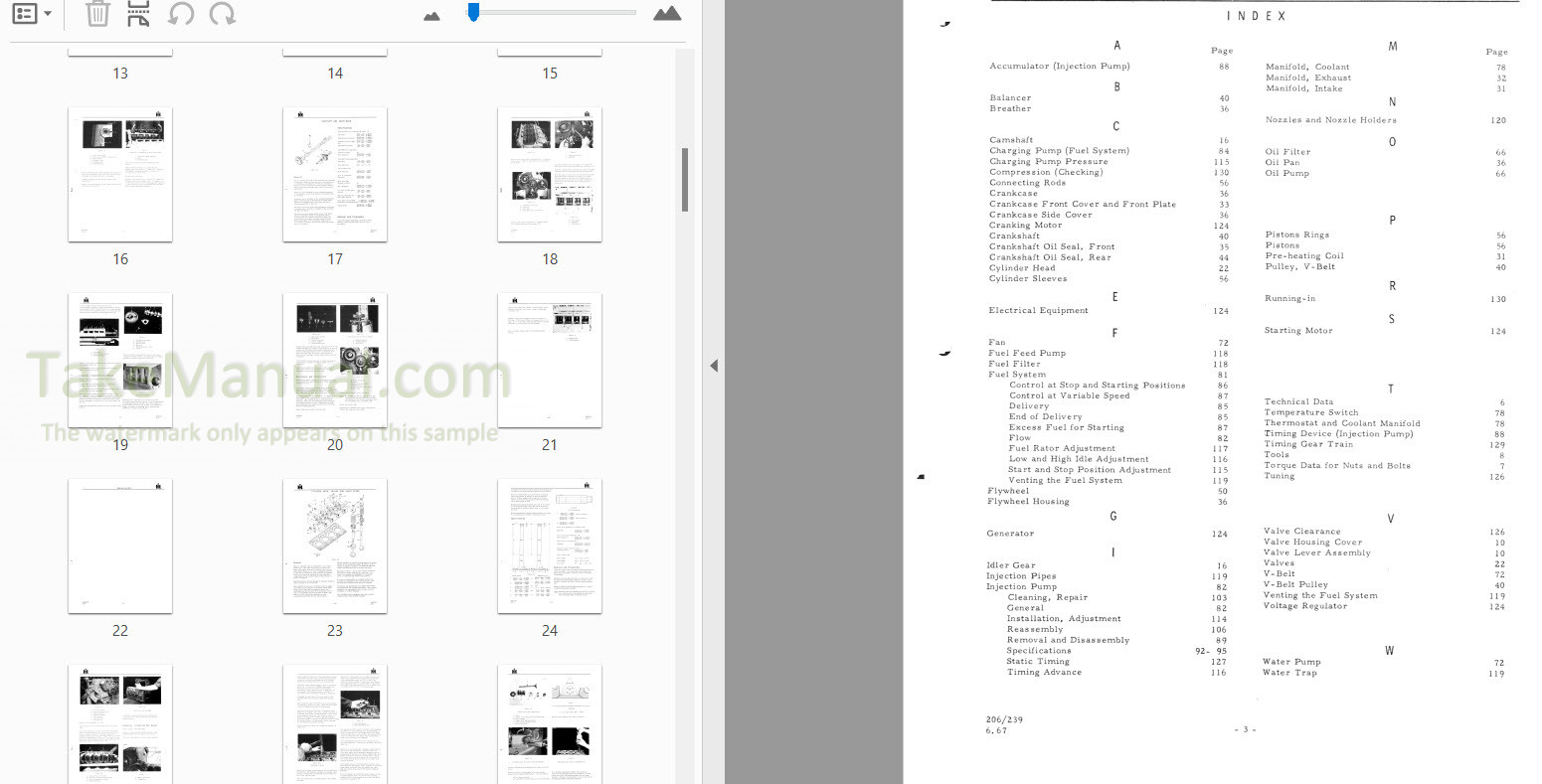

Contents
Accumulator (Injection Pump)
Balancer
Breather
Camshaft
Charging Pump (Fuel System)
Charging Pump Pressure Compression (Checking)
Connecting Rods Crankcase
Crankcase Front Cover and Front Plate
Crankcase Side Cover
Cranking Motor
Crankshaft
Crankshaft Oil Seal, Front
Crankshaft Oil Seal, Rear
Cylinder Head
Cylinder Sleeves
Electrical Equipment
Fan
Fuel Feed Pump
Fuel Filter
Fuel System
Generator
Idler Gear
Injection Pipes
Injection Pump
Manifold, Coolant
Manifold, Exhaust
Manifold, Intake
Nozzles and Nozzle Holders
Oil Filter
Oil Pan
Oil Pump
Pistons Rings
Pistons
Pre-heating Coil
Pulley, V-Belt
Running-in
Starting Motor
Technical Data
Temperature Switch
Thermostat and Coolant Manifold
Timing Device (Injection Pump) Timing Gear Train
Tools
Torque Data for Nuts and Bolts Tuning
Valve Clearance
Valve Housing Cover
Valve Lever Assembly Valves
V-Belt
V-Belt Pulley
Venting the Fuel System
Voltage Regulator
Water Pump
Water Trap
