Description
Factory Service Manual For Bobcat Three Point Snow Blower. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 78
Issued: november 2008
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: No
Hydraulic Diagrams: No
Models:
Bobcat Three-Point Snow Blower
3SB
54 Inch
S/N ABCW00101 & Above
66 Inch
S/N ABCU00101 & Above
72 Inch
S/N AB4K00101 & Above
Contents
-CONTENTS
Serial Number Location
Delivery Report
Identification And Machine Signs (Decals)
-PREVENTIVE MAINTENANCE
Troubleshooting
Service Schedule
Inspection
Lubricating The Implement
Regular Maintenance Items
Gearbox Fluid Change
Removal And Installation
Implement Storage And Return To Service
-HYDRAULIC SYSTEM

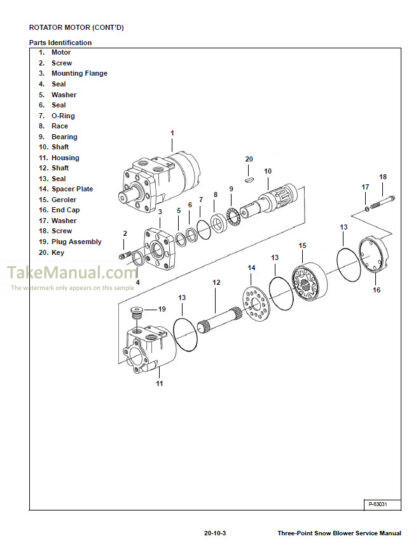

Rotator Motor
-MAIN FRAME
Auger
Chain Drive
Discharge Chute
Deflector
Fan
Gearbox
Hand Crank
Rotator Chain (Upper Chain)
Rotator Chain (Lower Chain)

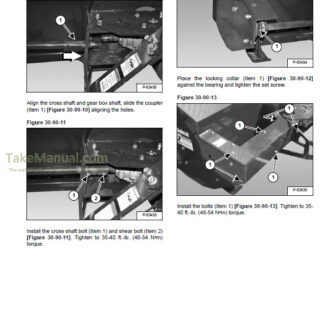

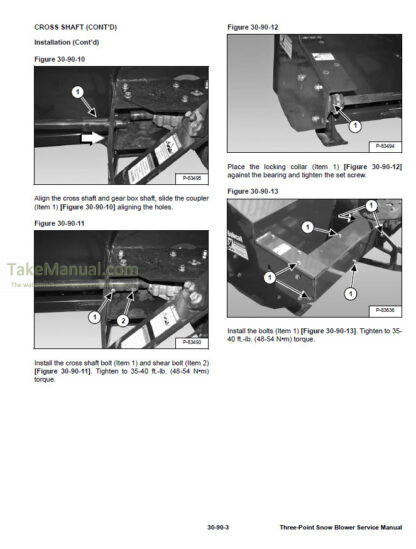

Cross Shaft
-SPECIFICATIONS AND SCHEMATICS
Hydraulic Schematic

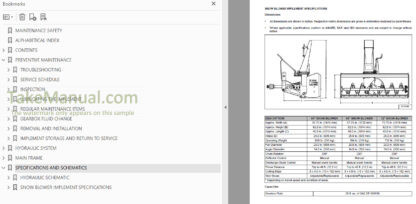

Snow Blower Implement Specifications
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
