Description
Factory Service Manual For Bobcat Three Point Finish Mower. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 74
Issued: march 2009
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: No
Hydraulic Diagrams: No
Models:
Bobcat Three-Point Finish Mower
3FM84
S/N AF4500101 & Above
Contents
-CONTENTS
Serial Number Location
Manual Storage
Delivery Report
Identification And Machine Signs (Decals)
-SAFETY AND MAINTENANCE
Troubleshooting
Service Schedule
Inspection
Removal And Installation Of Cutting Blades
Removal And Installation Of Belt
Regular Maintenance Items
Implement Storage And Return To Service
Lubricating The Implement
-MAIN FRAME
Caster Wheel
PTO Driveline

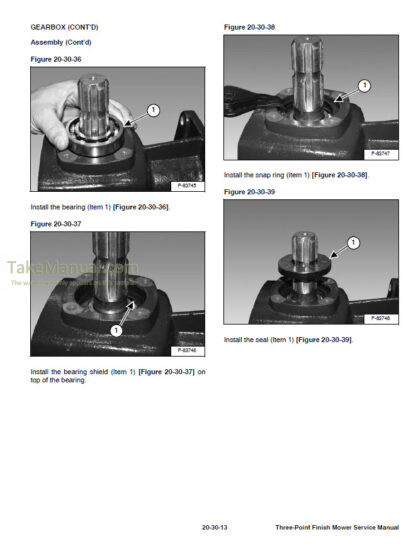

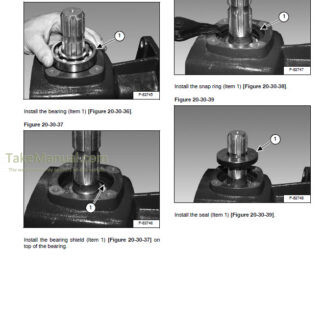

Gearbox
Blade Spindle
Anti-Scalp Wheel
Support Arm Bushing
-SPECIFICATIONS AND SCHEMATICS

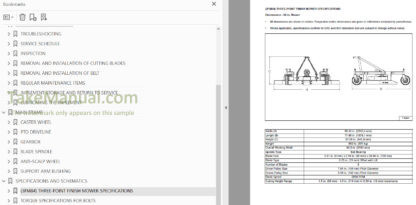

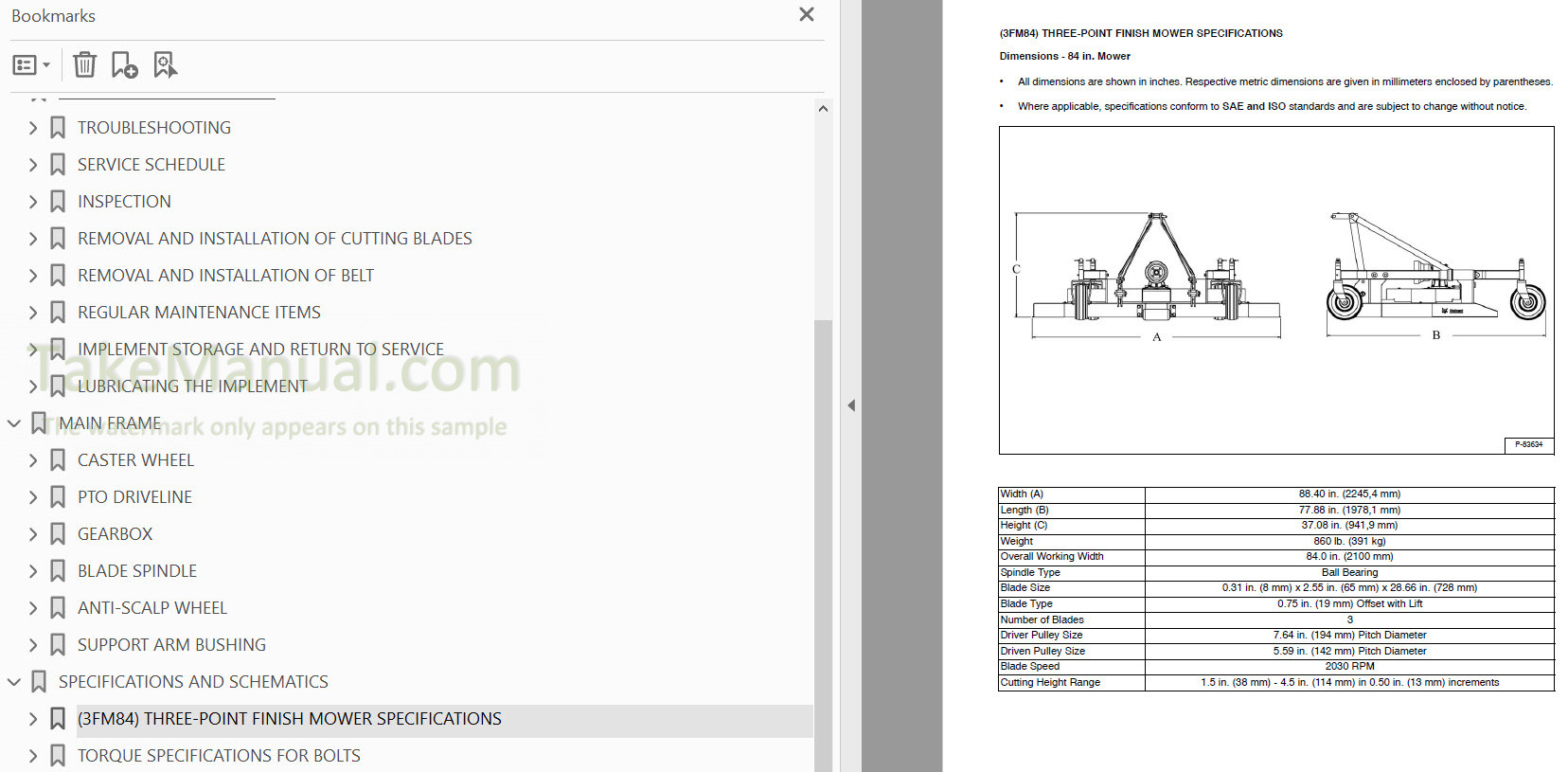

3FM84 Three-Point Finish Mower Specifications

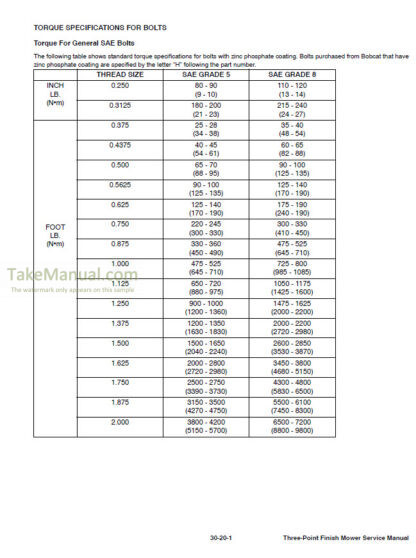

Torque Specifications For Bolts
Hydraulic Connection Specifications
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
