Description
Factory Service Manual For Bobcat Three Point Finish Mower. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 72
Issued: june 2010

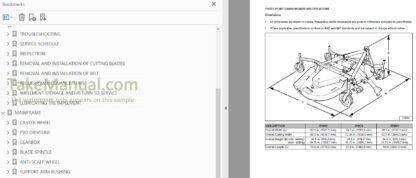

Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: No
Hydraulic Diagrams: No
Models:
Bobcat Three-Point Finish Mower
3FM60
S/N AL1C00101 & Above
3FM72
S/N AL1D00101 & Above
3FM84
S/N AL1E00101 & Above
Contents
-CONTENTS
Foreword
Serial Number Location
Delivery Report
Manual Storage Location
Implement Identification
Implement Signs (Decals)
-SAFETY & MAINTENANCE
Troubleshooting
Service Schedule
Inspection
Removal And Installation Of Cutting Blades
Removal And Installation Of Belt
Regular Maintenance Items
Implement Storage And Return To Service
Lubricating The Implement
-MAINFRAME
Caster Wheel
PTO Driveline

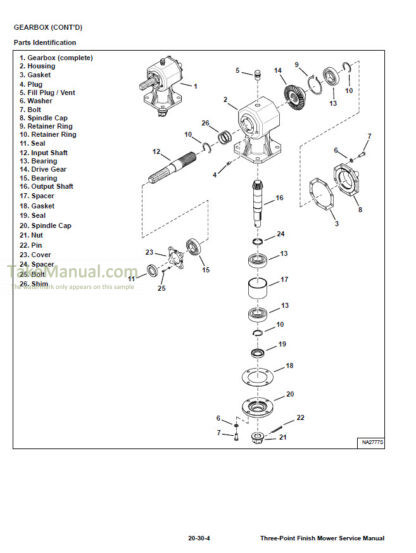

Gearbox

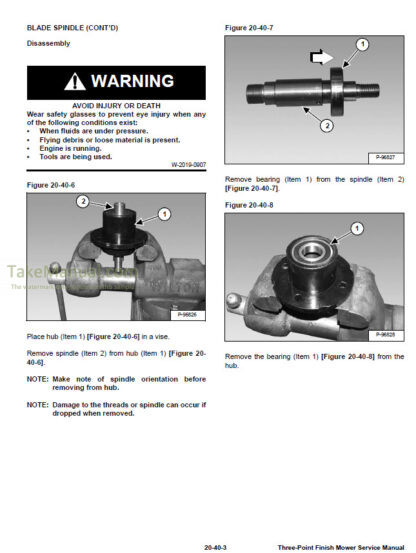

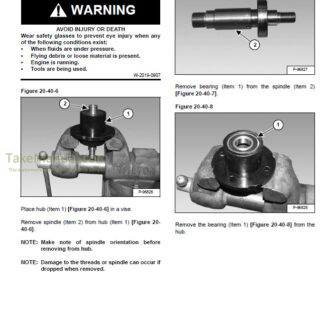

Blade Spindle
Anti-Scalp Wheel
Support Arm Bushing
-SPECIFICATIONS
Three-Point Finish Mower Specifications
Torque Specifications For Bolts
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
